Non Linear Junction Detector

The Non-Linear Junction Detector (NLJD) is a sophisticated tool designed to detect hidden electronics and semiconductors that may be switched off. This innovative device operates by emitting a probing frequency that interacts with the P-N junction of electronic semi-conductors. When these semiconductors are present, they respond with a second harmonic signal. Additionally, the NLJD can detect natural junctions like rust, which respond with a third harmonic signal.

Kapri Corp plays a crucial role as a leading importer and supplier of the Non-Linear Junction Detector, providing cutting-edge technology for the detection of hidden electronics. With a commitment to security and innovation, Kapri Corp offers advanced NLJD devices that cater to the needs of various industries.

The NLJD’s unique advantage lies in its capability to detect circuits without requiring them to be powered up. This feature makes it exceptionally useful for identifying circuits that could potentially be used for triggering Improvised Explosive Devices (IEDs). Furthermore, the NLJD proves invaluable in locating covert surveillance devices like spy bugs.

Kapri Corp’s dedication to importing and supplying the Non-Linear Junction Detector underscores its commitment to delivering state-of-the-art security solutions. By providing access to this advanced technology, We contribute in enhancing security measures across a wide range of sectors, from public spaces to critical infrastructure and beyond. For additional details on the Non Linear Junction Detector or any other products in our comprehensive portfolio, we invite you to connect with our technical experts

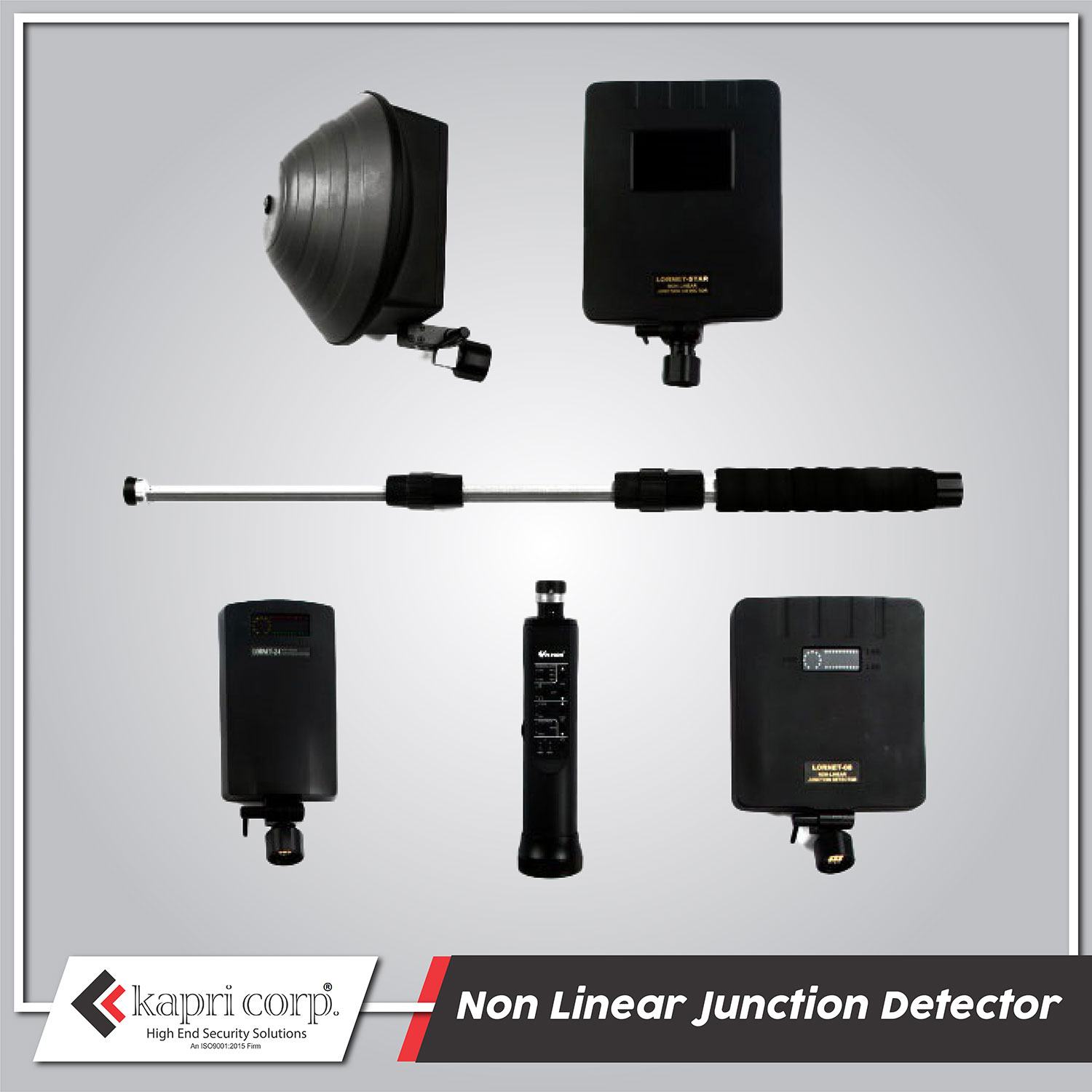

Non Linear Junction Detector

Specifications of Non Linear Junction Detector

For Technical Parameters / Specifications, please download

Features of Non Linear Junction Detector

The Non-Linear Junction Detector (NLJD) offered by Kapri Corp boasts several advanced features that make it a powerful tool for detecting hidden electronic devices:

  1. Harmonic Response Analysis: The NLJD analyses the 2nd and 3rd harmonic responses of radiated objects. This analysis enables quick and reliable identification of electronic devices as well as natural oxide semiconductors.
  2. Microwave Probing Signal: The NLJD operates by emitting a microwave probing signal, which interacts with semiconductor components. This probing signal triggers a response at the 2nd and 3rd harmonics in semiconductor components.
  3. Automatic Frequency Channel Selection: The NLJD automatically selects the best receiving frequency channel that is free from noise and distortion. This ensures flawless operation even in complex electromagnetic environments.
  4. Versatile Electronic Detection: The MW NLJD is designed to locate electronic devices both in active and switch-off states, providing comprehensive coverage.
  5. Digital Signal Processing: Utilizing digital processing of demodulated signals, the NLJD achieves maximum sensitivity in detecting harmonic responses.
  6. High Gain Parabolic Antenna: Equipped with a high-gain parabolic antenna (20 dB gain at 3600 MHz), the device extends the detection range of non-linear elements and precisely locates them in space.
  7. Laser Pinpointing: To aid the operator, the NLJD features a laser pinpointing system. This laser indicator directs the operator to the point where the maximum power of the probing signal is concentrated.

By offering a device with such advanced features, Kapri Corp contributes to enhancing security measures in various sectors, ensuring a higher level of safety and detection capabilities.

Kindly contact our technical experts for your specific needs and product requirements.

Do you have any questions or need help with our products? Submit a request or Call us.

Advantages of the Non-Linear Junction Detectors

The Non-Linear Junction Detectors (NLJD) come with a range of advantages that set them apart as reliable and efficient tools for electronic device detection:

  1. Interchangeable Frequency Heads: The NLJD features interchangeable heads with frequencies ranging from 800 MHz to 3.6 GHz, allowing for versatile and adaptable detection.
  2. Modular Flexibility: The NLJD is fully modular and can be used with or without a telescope, providing flexibility based on operational requirements.
  3. User-Friendly and Highly Sensitive: With user-friendly operation and high sensitivity, the NLJD ensures effective detection of electronic devices even in complex environments.
  4. Robust and Cable-Free Design: The NLJD boasts a robust construction and eliminates the need for external cabling, enhancing its durability and reliability during operations.
  5. Long Battery Life: With a battery life of over 5 hours, the NLJD enables extended usage without frequent recharging, enhancing operational efficiency.
  6. Optional LCD Display with Spectrum Analyser: The NLJD offers the convenience of an optional LCD display with a spectrum analyser, providing detailed insights for improved analysis.
  7. Lightweight Design: Weighing only 1.2 kg, the NLJD is the lightest in its category, ensuring ease of use and comfortable handling during inspections.
  8. Certified Parameters: All major parameters of the NLJD have been certified by the National Accreditation Board for Testing and Calibration Laboratories (NABL), ensuring accuracy and reliability.

These features collectively contribute to making Kapri Corp’s Non-Linear Junction Detectors a preferred choice for enhancing security and surveillance systems. For additional information about this product or any other in our range, please feel free to contact us.

Applications of Non-Linear Junction Detectors

Non-Linear Junction Detectors (NLJD) find application in a wide range of scenarios where the inspection of electronic devices is essential for security and safety:

  1. Security Inspections: NLJDs are used extensively for security inspections to locate hidden electronic devices that could pose threats or risks.
  2. IED and Explosives Detection: NLJDs are highly effective in detecting improvised explosive devices (IEDs) and explosives hidden within electronic components.
  3. Weapons Detection: NLJDs are employed to identify electronic triggers or components used in weapons systems, ensuring comprehensive security checks.
  4. Electronic Device Inspections: NLJDs play a crucial role in inspecting and locating electronic devices that could be used for unauthorized surveillance, espionage, or threats.

Kapri Corp’s commitment to supplying NLJDs for these applications underscores its dedication to enhancing security measures and maintaining safety.

Technical specifications of Non-Linear Junction Detectors

Best Price
Company Kapri Corp
Brand Kapri Corp
Category Explosive Detection Equipment
Product name Non Linear Junction Detector
Storage temperature °C -10 to +65
Weight 1.2 kg
Communication protocol     Bluetooth / Wi-Fi / Cable
Operating temperature °C -10 to +50
Power Battery powered
Coil (standard) 11″ Double-D lightweight
Frequency 1.5 – 100 kHz
Length 1050mm – 1370mm
Parabolic antenna 20 dB gain at 3600 MHz
Color Black
Minimum Order Quantity  1 PC
